Specifikacije izdelka

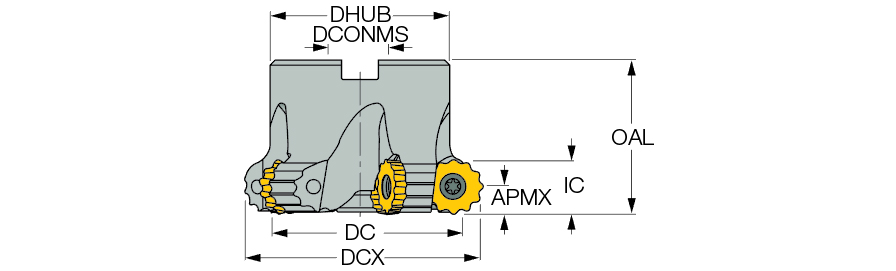

| Cutting Diameter (DC/DCX) | 80 mm | Master Insert Identification (MIID) | RCCT 1206MO |
| Cutting Diameter (DC) | 68 mm | Coolant Supply Property (CSP) | External |
| Cutting Diameter Maximum (DCX) | 80 mm | Material ohišja | Steel |
| Cutting Item Count (CICT) | 7 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 6 mm | Aplikacija | | Interpoliranje | Plano rezkanje | Plunging & rezkanje vdolbin | Profilno rezkanje | Vkopavanje | |
| Connection Diameter Machine Side (DCONMS) | 27 mm | Vrsta merjenja | Metric |
| Overall Length (OAL) | 50 mm | Tool Type | Round corner cutters |
| Hub Diameter (DHUB) | 58.5 mm | Enota | M |

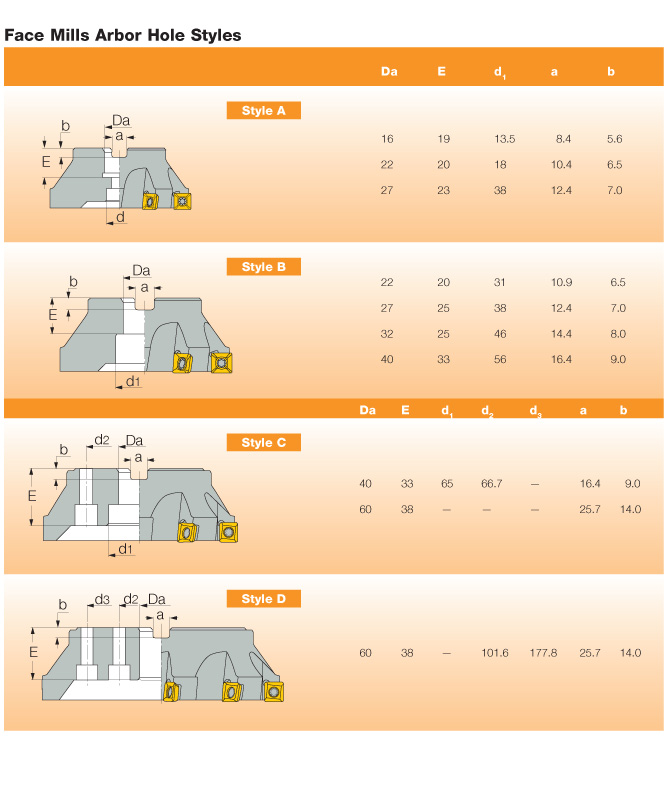

| Arbor Style | B |
Lastnosti izdelka
| FamilyDesc | MILLSHRED - Face mills carrying round inserts with serrated cutting edges or regular round inserts. Used for rough machining applications on small dies and low power machines. | Priimek | FRW |
| COO | Israel | BlagovnaZnamka | Iscar |
Shipping Info
PackageWeight
0.8560
Ime
Indexable Face Mills
Priimek
FRW
BlagovnaZnamka
Iscar
