E-SWUBR 4-5

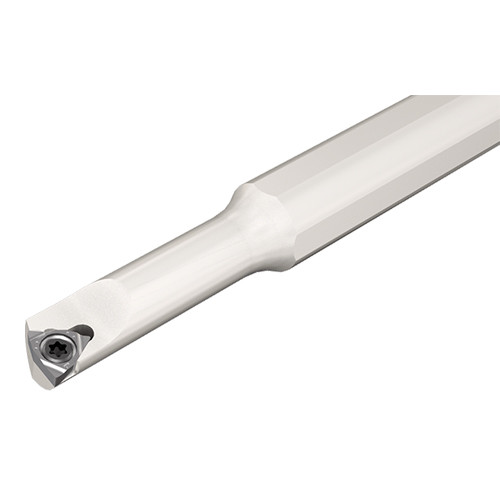

Screw clamp miniature boring bars carrying small WBMT trigon inserts. S - Steel shank; E - Carbide shank with coolant hole.
Specifikacije izdelka

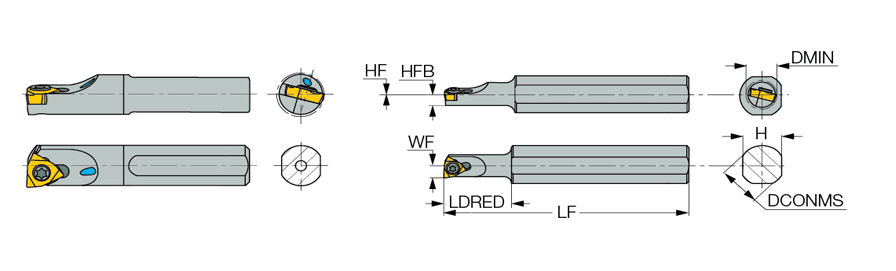

| Connection Diameter Machine Side (DCONMS) | 1/4″ | Aplikacija | | Not. 80° trigon, pristop 93° | |
| Overall Length (OAL) | 4″ | Rake Angle Axial (GAMP) | 0 Degrees |
| Shank Height (H) | 0.22″ | Rake Angle Radial (GAMF) | -15 Degrees |
| Functional Width (WF) | 0.14″ | Tool Type | Internal Indexble -Turn Tool |
| Master Insert Identification (MIID) | WB.. 520L | Material ohišja | Carbide |
| Minimum Bore Diameter (DMIN) | 0.275″ | Vrsta merjenja | Inch |
| Cutting Direction (HAND) | Right Hand | Enota | I |
| Coolant Supply Property (CSP) | Coolant Thru |
Lastnosti izdelka
| FamilyDesc | Screw clamp miniature boring bars carrying small WBMT trigon inserts. S - Steel shank; E - Carbide shank with coolant hole. | Priimek | E/S-SWUBR/L |
| COO | Israel | BlagovnaZnamka | Iscar |
Shipping Info
PackageWeight
0.1477
Ime
Indexable Internal Turning Tools
Priimek
E/S-SWUBR/L
BlagovnaZnamka
Iscar
