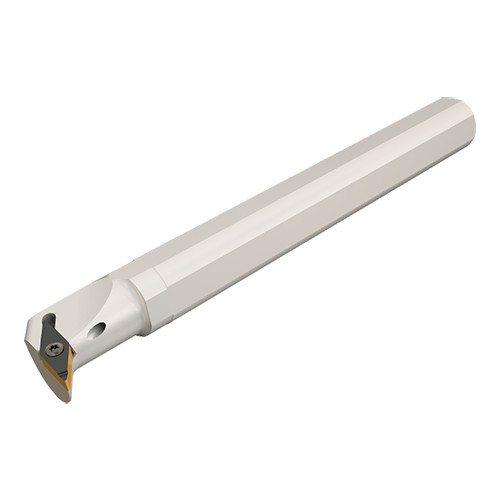

A25R SVUNL-12
Boring bars with internal coolant holes carrying 35° negative rhombic inserts.
Specifikacije izdelka

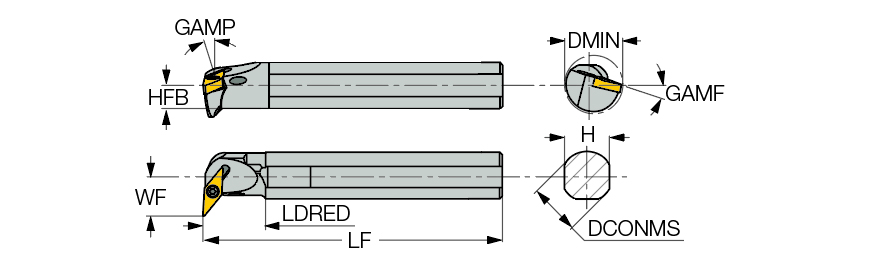

| Connection Diameter Machine Side (DCONMS) | 25 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Overall Length (OAL) | 200 mm | Aplikacija | | Not. 35° romb, pristop 93° | |
| Reduced Body Diameter Length (LDRED) | 35 mm | Rake Angle Axial (GAMP) | -6.5 Degrees |
| Shank Height (H) | 23 mm | Rake Angle Radial (GAMF) | -14 Degrees |
| Functional Width (WF) | 18.5 mm | Tool Type | Internal Indexble -Turn Tool |
| Master Insert Identification (MIID) | VNMG 2.5.. | Material ohišja | Steel |
| Minimum Bore Diameter (DMIN) | 31.5 mm | Vrsta merjenja | Metric |
| Cutting Direction (HAND) | Left Hand | Enota | M |
Lastnosti izdelka
| FamilyDesc | Boring bars with internal coolant holes carrying 35° negative rhombic inserts. | Priimek | A-SVUNR/L |
| Opombe | For inserts with corner radius of 0.8 mm and larger, seat needs to be modified to ensure clearance. | BlagovnaZnamka | Iscar |
| COO | Israel |
Shipping Info
PackageWeight
0.5970
Ime
Indexable Internal Turning Tools
Priimek
A-SVUNR/L
BlagovnaZnamka
Iscar
