A-SDUCR 6-2

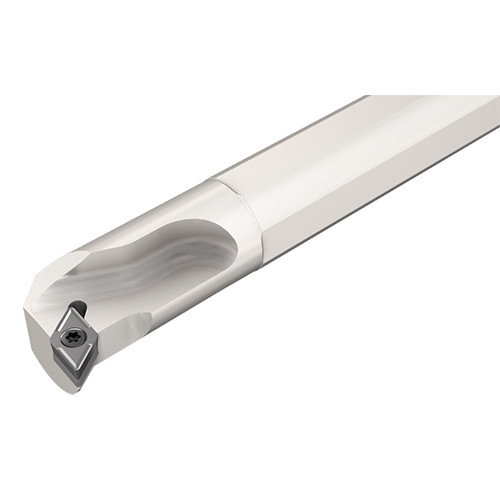

Screw lock boring bars for 55° rhombic inserts with 7° clearance.
Specifikacije izdelka

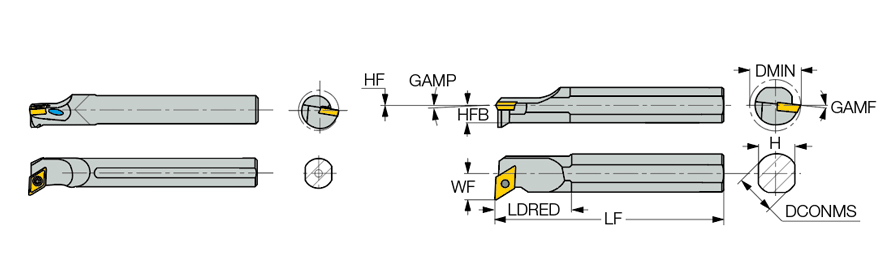

| Connection Diameter Machine Side (DCONMS) | 3/8″ | Coolant Supply Property (CSP) | Coolant Thru |
| Overall Length (OAL) | 5″ | Aplikacija | | Not. 55° romb, pristop 93 5° | |
| Reduced Body Diameter Length (LDRED) | 3/4″ | Rake Angle Axial (GAMP) | 3 Degrees |
| Shank Height (H) | 0.35″ | Rake Angle Radial (GAMF) | -8 Degrees |
| Functional Width (WF) | 0.406″ | Tool Type | Internal Indexble -Turn Tool |
| Master Insert Identification (MIID) | DC.. 2 | Material ohišja | Steel |
| Minimum Bore Diameter (DMIN) | 5/8″ | Vrsta merjenja | Inch |
| Cutting Direction (HAND) | Right Hand | Enota | I |
Lastnosti izdelka
| FamilyDesc | Screw lock boring bars for 55° rhombic inserts with 7° clearance. | Priimek | A/E/S-SDUCR/L |
| Opombe | S - steel shank, A - steel shank with coolant hole, E - carbide shank with coolant hole | BlagovnaZnamka | Iscar |
| COO | Japan |
Shipping Info
PackageWeight
0.1896
Ime
Indexable Internal Turning Tools
Priimek
A/E/S-SDUCR/L
BlagovnaZnamka
Iscar
