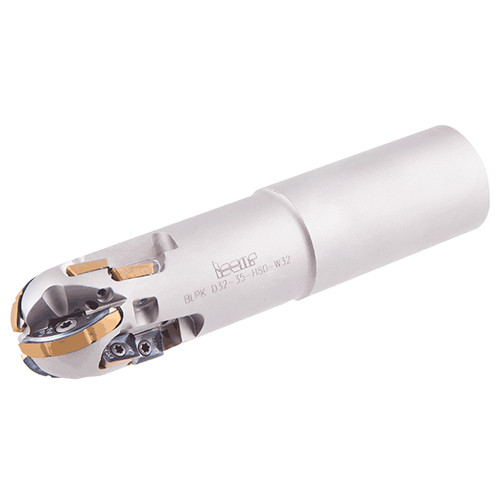

BLPK D40-47-H85-W40
Three flute fully effective long edged, ball nose endmills. Designed for rough and semi-finish milling of sculptured surfaces, especially with steep and perpendicular profiles. Can be used for up and down ramping.
Specifikacije izdelka
| Cutting Diameter (DC/DCX) | 40 mm | Usable Length (LU) | 85 mm |
| Cutting Diameter (DC) | 40 mm | Flute Count (NOF) | 3 |
| Cutting Item Count (CICT) | 12 | Corner Radius (RE) | 20 mm |
| Depth of Cut Maximum (APMX) | 47 mm | Body Half Taper Angle (BHTA) | 180 Degrees |
| Overall Length (OAL) | 170 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Tip držala | Weldon | Cutting Direction (HAND) | Right Hand |
| Ramping Angle Maximum (RMPX) | 0 Degrees | Vrsta merjenja | Metric |
| Aplikacija | | Interpoliranje | Plunging & rezkanje vdolbin | Profilno rezkanje | Rezkarji za vrtanje v polno | Vkopavanje | | Material ohišja | Steel |
| Connection Diameter Machine Side (DCONMS) | 40 mm | Connection Code Machine Side (CCMS) | Weldon |
| Head Length (LH) | 90 mm | Enota | M |
| Tool Type | Ball nose endmills |
Lastnosti izdelka
| FamilyDesc | Three flute fully effective long edged, ball nose endmills. Designed for rough and semi-finish milling of sculptured surfaces, especially with steep and perpendicular profiles. Can be used for up and down ramping. | Priimek | BLPK |

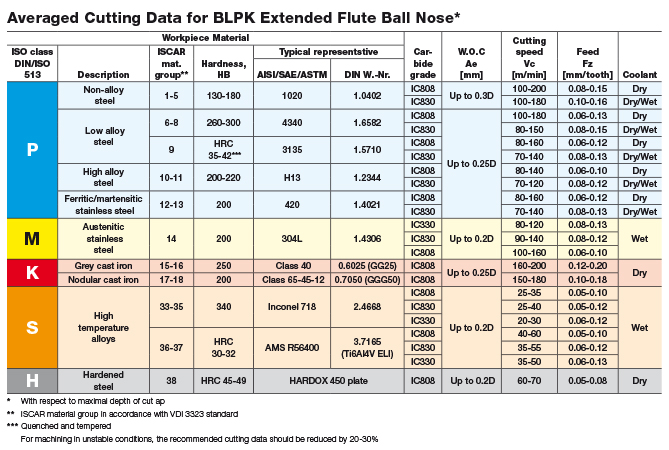

| Opombe | For detailed cutting recommendations and adaptation, click on More Info | BlagovnaZnamka | Iscar |
| COO | Israel |
Shipping Info
PackageWeight
1.3750
Ime
Indexable End Mills
Priimek
BLPK
BlagovnaZnamka
Iscar
