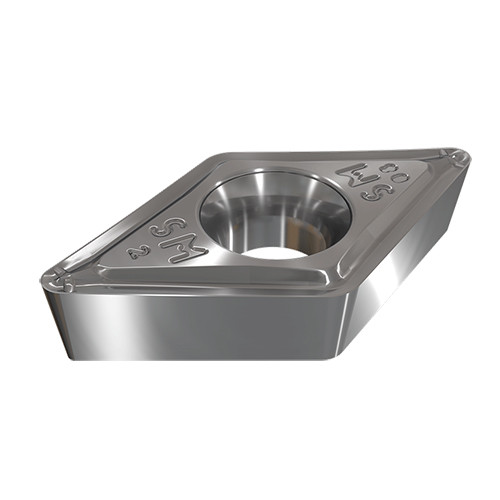

DCMT 11T304-SM IC8250
Specifikacije izdelka

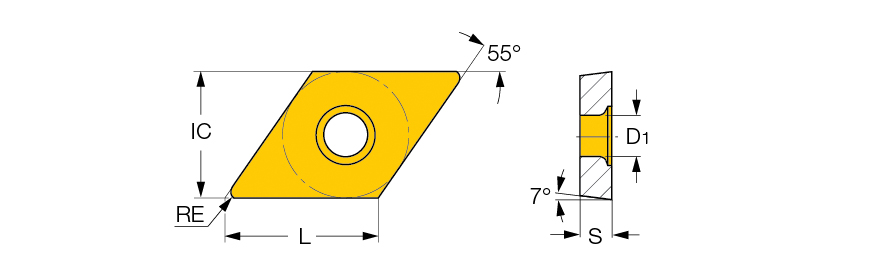

| Ustrezni materiali | | Jeklo | Nerjaveče jeklo | | Fixing Hole Diameter (D1) | 4.4 mm |
| Aplikacija | | Not. 55° romb, pristop 93 5° | Y os za Swiss Tip stroje | Zun. 55° romb, pristop 107.5° | zun. 55° romb, pristop 62.5° | Zun. 55° romb, pristop 91° | Zun. 55° romb, pristop 93° | | Tool Type | Turn Positive Inserts |
| Model ploščice | DCMT | Min D.O.C.(globina reza) | 0.5 mm |
| Corner Radius (RE) | 0.4 mm | Depth of Cut Maximum (APMX) | 2.5 mm |
| Velikost ploščice | 11T304 | Min. Pomik pri struženju (ft(min)) | 0.07 mm/rev |
| Cutting Edge Length (L) | 11.6 mm | Max. Turning Feed (ft(max)) | 0.25 mm/rev |
| Insert Thickness (S) | 3.97 mm | Clearance Angle Major (AN) | 7 Degrees |
| Inscribed Circle Diameter (IC) | 9.52 mm | Tip lomilca | SM |
| Material rezilnega robu | Carbide | Vrsta merjenja | Metric |
| Prevleka | TiCN+Al2O3+TiN | Material ohišja | Carbide |
| Kvaliteta | IC8250 | Enota | M |
Lastnosti izdelka
| FamilyDesc | 55° rhombic 7° positive flank inserts used for semi-finishing and finish turning. Chip breaking in moderate feed range. Positive rake, low cutting forces. Used for a wide range of materials including soft and exotic alloys. | Priimek | DCMT/DCGT-SM |
| Opombe | For dimensions and tolerances, see more info. | BlagovnaZnamka | Iscar |
| COO | Israel |
Shipping Info
PackageWeight
0.0056
Ime
Turning Indexable Inserts
Priimek
DCMT/DCGT-SM
BlagovnaZnamka
Iscar
