MM EC1.0B150R000-4T15 IC608
Interchangeable solid carbide heads with variable pitch and 1.5xD flute lengths for CHATTER-FREE roughing and finishing operations. High material removal rates
Specifikacije izdelka
| Aplikacija | | Interpoliranje | Kotni rezkarji | Plunging & rezkanje vdolbin | Rezkanje utorov | Rezkarji za vrtanje v polno | Vkopavanje | | Kvaliteta | IC608 |

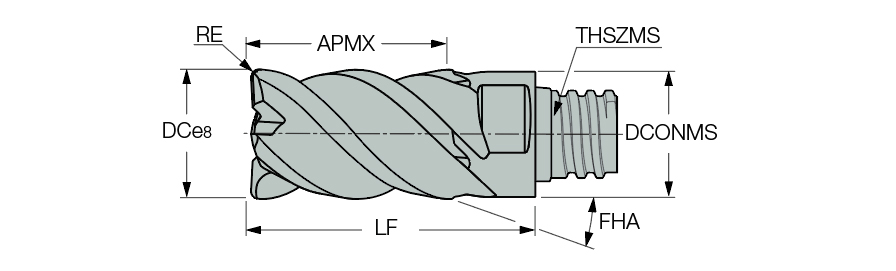

| Cutting Diameter (DC) | 1″ | Prevleka | AlTiCrSiN |
| Ustrezni materiali | | Jeklo | Nerjaveče jeklo | Železova litina | Trdi materiali | Visoko legirane zlitine | | Vrsta merjenja | Inch |
| Flute Count (NOF) | 4 | Maximum Feed per Tooth (fz(max)) | 0.0066 ″/tooth |
| Corner Radius (RE) | 0″ | Material rezilnega robu | Carbide |
| Connection Thread Nominal Size Machine Side (THSZMS) | T15 | Ramping Angle Maximum (RMPX) | 5 Degrees |
| Depth of Cut Maximum (APMX) | 1-1/2″ | Tool Type | Solid carbide center cutting endmills 90° |
| Connection Diameter Machine Side (DCONMS) | 0.941″ | Material ohišja | Carbide |
| Functional Length (LF) | 2.067″ | Minimum Feed per Tooth (fz(min)) | 0.0023 ″/tooth |
| Flute Helix Angle (FHA) | 46.5 Degrees | Enota | I |
Lastnosti izdelka
| FamilyDesc | Interchangeable solid carbide heads with variable pitch and 1.5xD flute lengths for CHATTER-FREE roughing and finishing operations. High material removal rates | Priimek | MM EC-Z4-1.5xD |
| Opombe | For tightening torques and clamping instructions, click on More Info. Do not apply lubricant to the threaded connection. | BlagovnaZnamka | Iscar |
| COO | Israel |
Shipping Info
PackageWeight
0.6570
Ime
Solid End Mill Heads
Priimek
MM EC-Z4-1.5xD
BlagovnaZnamka
Iscar
Related Documentation
- Maximum depth of cut (APMX) while milling full slot from solid material is 1xDC - Maximum width of cut for milling shoulder with APMX=1.5xDC is 0.3xDC - Reinforced Weldon shanks are strongly recommended - In cases of unfavorable machining conditions, the cutting data should be decreased by 20%-30%
