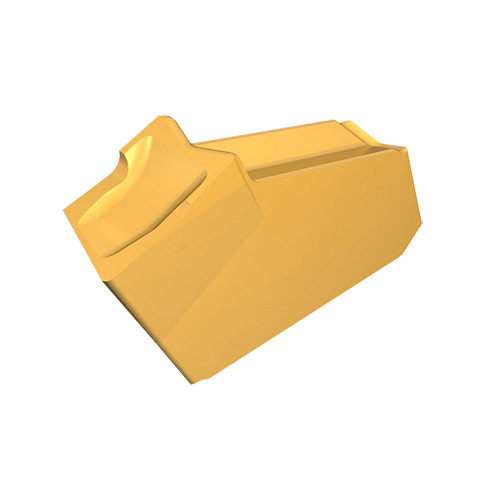

GFR 1.6 -15D IC20
First choice for the parting of bars, hard materials and tough applications. Positive rake, single cavity with a negative land and shoulders, provides extra cutting-edge strength. Medium-to-high feeds.
Specifikacije izdelka

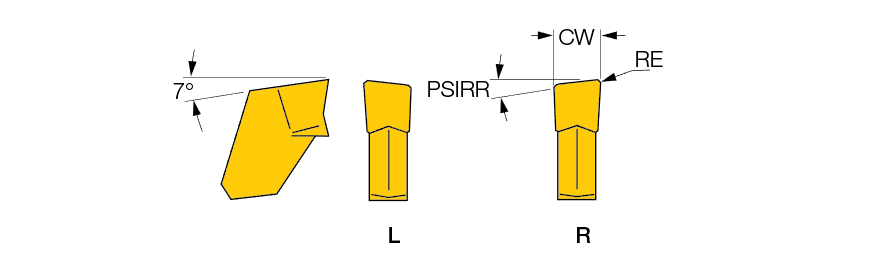

| Cutting Width (CW) | 1.6 mm | Max. Grooving Feed (fg(max)) | 0.08 mm/rev |
| Corner Radius (RE) | 0.16 mm | Min. Pomik pri zarezovanju (fg(min)) | 0.03 mm/rev |
| Material rezilnega robu | Carbide | Tip lomilca | C |
| Prevleka | Uncoated | Tool Type | Parting & Grooving Inserts |
| Kvaliteta | IC20 | Vrsta merjenja | Metric |
| Cutting Direction (HAND) | Right Hand | Material ohišja | Carbide |
| Aplikacija | | Odrezovanje | | Cutting Edge Angle Major Right Hand (PSIRR) | 15 Degrees |
| Ustrezni materiali | | Nerjaveče jeklo | Železova litina | Trdi materiali | Neželezni materiali | Visoko legirane zlitine | | Enota | M |
Lastnosti izdelka
| FamilyDesc | First choice for the parting of bars, hard materials and tough applications. Positive rake, single cavity with a negative land and shoulders, provides extra cutting-edge strength. Medium-to-high feeds. | Priimek | GFR/L-C |
| COO | Israel | BlagovnaZnamka | Iscar |
Shipping Info
PackageWeight
0.0017
Ime
Parting Off Indexable Inserts
Priimek
GFR/L-C
BlagovnaZnamka
Iscar
