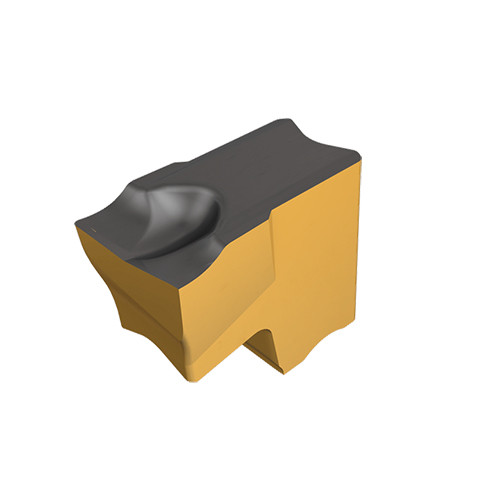

TAG R5J-4D IC830
First choice for soft materials, alloy steel and austenitic stainless steel. Parting of tubes, small diameters and thin-walled parts. Cutting edge with positive rake used at low-to-medium feeds. The JS-type has sharp corners.
Specifikacije izdelka

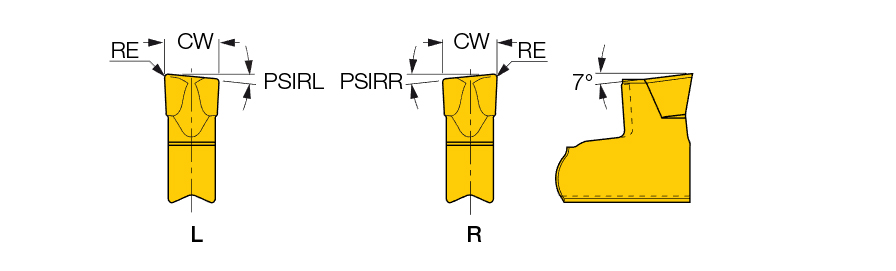

| Cutting Width (CW) | 5.05 mm | Max. Grooving Feed (fg(max)) | 0.18 mm/rev |
| Corner Radius (RE) | 0.25 mm | Min. Pomik pri zarezovanju (fg(min)) | 0.05 mm/rev |
| Material rezilnega robu | Carbide | Tip lomilca | J |
| Prevleka | AlTiN+TiN | Tool Type | Parting & Grooving Inserts |
| Kvaliteta | IC830 | Vrsta merjenja | Metric |
| Cutting Direction (HAND) | Right Hand | Material ohišja | Carbide |
| Aplikacija | | Odrezovanje | | Cutting Edge Angle Major Right Hand (PSIRR) | 4 Degrees |
| Ustrezni materiali | | Jeklo | Nerjaveče jeklo | Visoko legirane zlitine | | Enota | M |
Lastnosti izdelka
| FamilyDesc | First choice for soft materials, alloy steel and austenitic stainless steel. Parting of tubes, small diameters and thin-walled parts. Cutting edge with positive rake used at low-to-medium feeds. The JS-type has sharp corners. | Priimek | TAG R/L-J/JS |
| COO | Israel | BlagovnaZnamka | Iscar |
Shipping Info
PackageWeight
0.0049
Ime
Parting Off Indexable Inserts
Priimek
TAG R/L-J/JS
BlagovnaZnamka
Iscar
