SCD 040-017-060 ACP3N IC908
DIN 6537 solid carbide drills with coolant holes, drilling depth 3xD.
Specifikacije izdelka

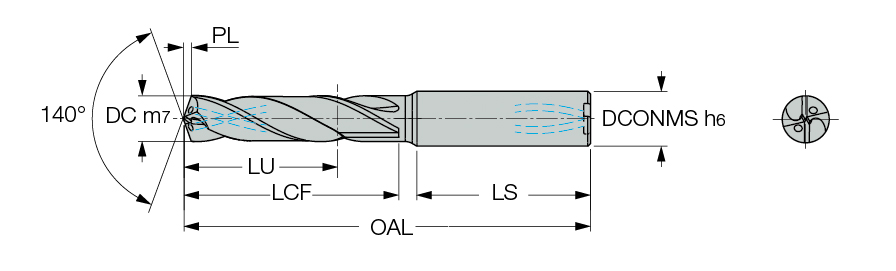

| Drill Bit Size / Cutting Diameter (DC) | 4 mm | Kvaliteta | IC908 |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 4 mm | Vrsta merjenja | Metric |
| Prevleka | TiAlN | Usable Length (LU) | 17 mm |
| Ustrezni materiali | | Jeklo | Nerjaveče jeklo | Železova litina | Trdi materiali | Visoko legirane zlitine | | Length Chip Flute (LCF) | 25 mm |
| Aplikacija | | Vrtanje | | Overall Length (OAL) | 66 mm |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Flute Count (NOF) | 2 |
| Coolant Supply Property (CSP) | Coolant Thru | Cutting Direction (HAND) | Right Hand |
| Number of Teeth | 2 | Material ohišja | Carbide |
| Shank Length (LS) | 35 mm | Connection Code Machine Side (CCMS) | Cylindrical |
| Tip držala | Round | Shank Diameter Tolerance (TCDMM) | h6 |
| Material rezilnega robu | Carbide | Enota | M |
| Tool Type | solid carbide Drills |
Lastnosti izdelka
| FamilyDesc | DIN 6537 solid carbide drills with coolant holes, drilling depth 3xD. | COO | Korea |
Shipping Info
PackageWeight
0.0210
