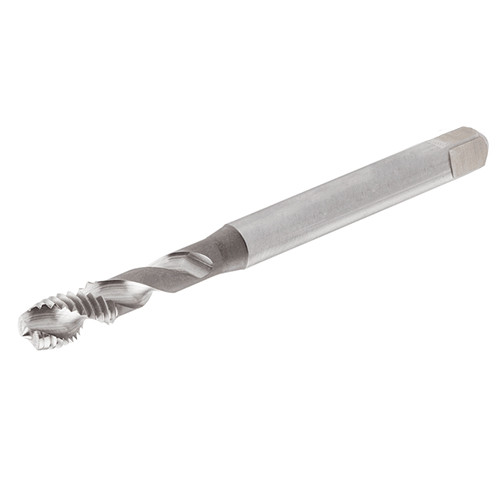

TPS M-2.6X0.45-M HE
DIN 13 HSS spiral flute machine taps - metric coarse threads, for a wide range of materials.
Specifikacije izdelka

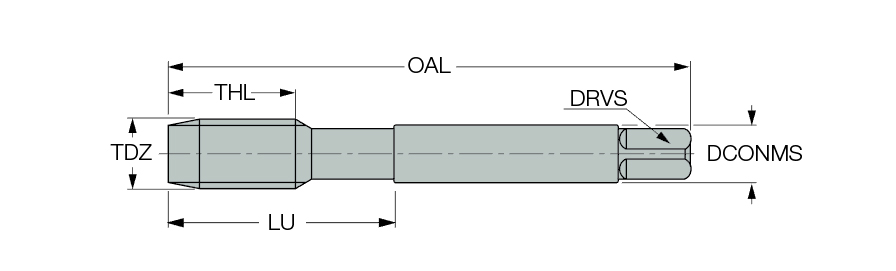

| Thread Diameter Size (TDZ) | M2.6 | Tool Type | Machine Blind Hole Taps |
| Thread Pitch (TP) | 0.45 mm | Prevleka | Uncoated |
| Standard navoja | THFT | | Coolant Supply Property (CSP) | External |
| Overall Length (OAL) | 50 mm | Vrsta merjenja | Metric |
| Thread Cutting Part Length (THL) | 9 mm | Kvaliteta | HE |
| Usable Length (LU) | 15 mm | Thread Form Type (THFT) | M60 |
| Connection Diameter Machine Side (DCONMS) | 2.8 mm | Aplikacija | | Globoke luknje s kratkim navojem | Nav. svedri za globoke slepe luknje | Nav. svedri za kratke slepe luknje | |
| Flute Count (NOF) | 3 | Material ohišja | HSS |
| Flute Helix Angle (FHA) | 40 Degrees | Drive Size (DRVS) | 2.1 mm |
| Material rezilnega robu | HSS | Velikost navoja | M2.6 × 0.45 |
| Standard | DIN 371 | Enota | M |
Lastnosti izdelka
| FamilyDesc | DIN 13 HSS spiral flute machine taps - metric coarse threads, for a wide range of materials. | COO | Korea |
