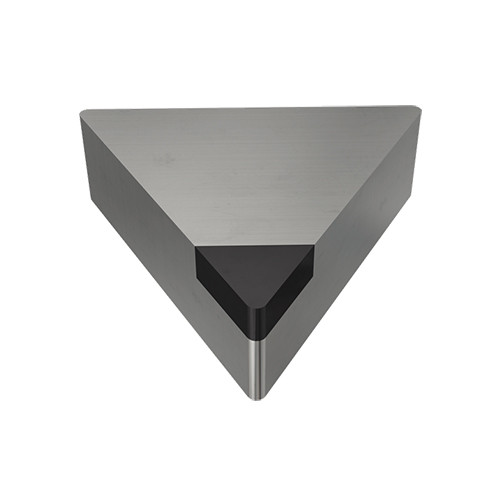

TNGN 110308 BI15HC
Negative 60° triangular inserts with single CBN top corner for, used for hardened steel and cast iron
Specifikacije izdelka
| Ustrezni materiali | | Trdi materiali | | Kvaliteta | BI15HC |
| Aplikacija | | Not. 60° trikotnik, pristop 91° | Zun. 60° trikotni, pristop 93° | | Tool Type | Turn Positive Inserts |
| Model ploščice | TNGN | Min D.O.C.(globina reza) | 0.05 mm |
| Corner Radius (RE) | 0.8 mm | Depth of Cut Maximum (APMX) | 0.5 mm |
| Velikost ploščice | 110308 | Min. Pomik pri struženju (ft(min)) | 0.05 mm/rev |
| Cutting Edge Length (L) | 11 mm | Max. Turning Feed (ft(max)) | 0.3 mm/rev |
| Insert Thickness (S) | 3.18 mm | Vrsta merjenja | Metric |
| Inscribed Circle Diameter (IC) | 6.35 mm | Material ohišja | Carbide |
| Material rezilnega robu | PCBN | Enota | M |
Lastnosti izdelka
| FamilyDesc | Negative 60° triangular inserts with single CBN top corner for, used for hardened steel and cast iron | Priimek | TNGN (CBN) |
| Opombe | For dimensions and tolerances, see more info. | BlagovnaZnamka | Iscar |
| COO | Germany |
Shipping Info
Ime
Turning Indexable Inserts
Priimek
TNGN (CBN)
BlagovnaZnamka
Iscar
