TPGN UNF 7/16-20-M HETI
HSSE 5% Co Spiral Flute Machine Taps - Unified Fine Threads, for a Wide Range of Materials
Specifikacije izdelka

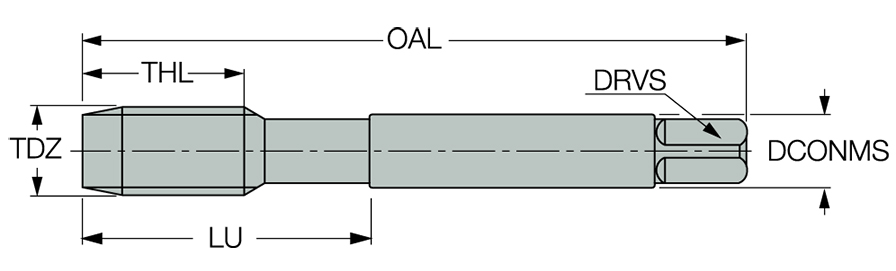

| Thread Diameter Size (TDZ) | UNF 7/16 | Tool Type | Machine Through Hole Taps |
| Threads per Inch (TPI) | 20 | Prevleka | TiN |
| Overall Length (OAL) | 100 mm | Drive Size (DRVS) | 6.2 mm |
| Thread Cutting Part Length (THL) | 18 mm | Vrsta merjenja | Metric |
| Connection Diameter Machine Side (DCONMS) | 8 mm | Kvaliteta | HETI |
| Flute Count (NOF) | 4 | Velikost navoja | UNF 7/16 - 20 |
| Aplikacija | | Nav. svedri za globoke skoznje luknje | Nav. svedri za kratke skoznje luknje | | Material ohišja | HSS |
| Material rezilnega robu | HSS | Enota | M |
| Standard | DIN 376 |
Lastnosti izdelka
| FamilyDesc | HSSE 5% Co Spiral Flute Machine Taps - Unified Fine Threads, for a Wide Range of Materials | COO | Hungary |
Shipping Info
PackageWeight
0.0490
