MD-MNC 2000-IMH50-0941-W8

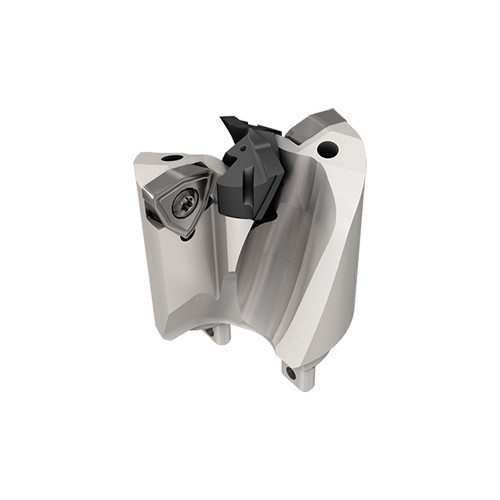

Exchangeable drilling heads with IMH connection, carrying SUMO-CHAM pilot insert for precise centering, as well as two peripheral trigon WCGX inserts for achieving a smooth surface finish and maintaining a tight hole diameter
Specifikacije izdelka

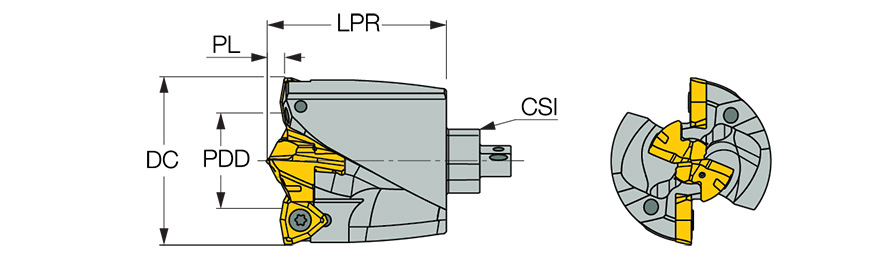

| Cutting Diameter (DC) | 2″ | Master Insert Identification (MIID) | ICP 0941-MNC 4F |
| Aplikacija | | Vrtanje | | Point Length (PL) | 0.228″ |
| Insert Seat Size Code (SSC) | 8 | Material ohišja | Steel |
| Protruding Length (LPR) | 2.122″ | Decimalna mesta | 2″ |
| Vrsta merjenja | Inch | Enota | I |
Lastnosti izdelka
| FamilyDesc | Exchangeable drilling heads with IMH connection, carrying SUMO-CHAM pilot insert for precise centering, as well as two peripheral trigon WCGX inserts for achieving a smooth surface finish and maintaining a tight hole diameter | COO | Israel |
Shipping Info
PackageWeight
1.3492
