MD-MNC 410-219-W6

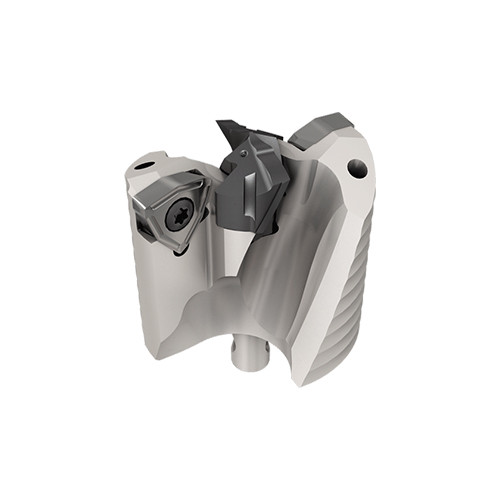

Exchangeable drilling heads with Iscar MD connection, carrying SUMO-CHAM pilot insert for precise centering, as well as two peripheral triangular WCGX inserts for achieving a smooth surface finish and maintaining a tight hole diameter
Specifikacije izdelka

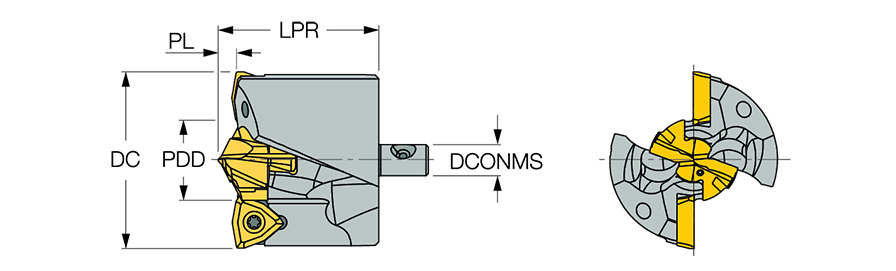

| Cutting Diameter (DC) | 41 mm | Vrsta merjenja | Metric |
| Aplikacija | | Vrtanje | | Master Insert Identification (MIID) | ICP 219-MNC 4F |
| Connection Diameter Machine Side (DCONMS) | 7.1 mm | Point Length (PL) | 5.4 mm |
| Insert Seat Size Code (SSC) | 21.0 | Material ohišja | Steel |
| Protruding Length (LPR) | 35.8 mm | Enota | M |
Lastnosti izdelka
| FamilyDesc | Exchangeable drilling heads with Iscar MD connection, carrying SUMO-CHAM pilot insert for precise centering, as well as two peripheral triangular WCGX inserts for achieving a smooth surface finish and maintaining a tight hole diameter | COO | Israel |
Shipping Info
PackageWeight
0.2250
